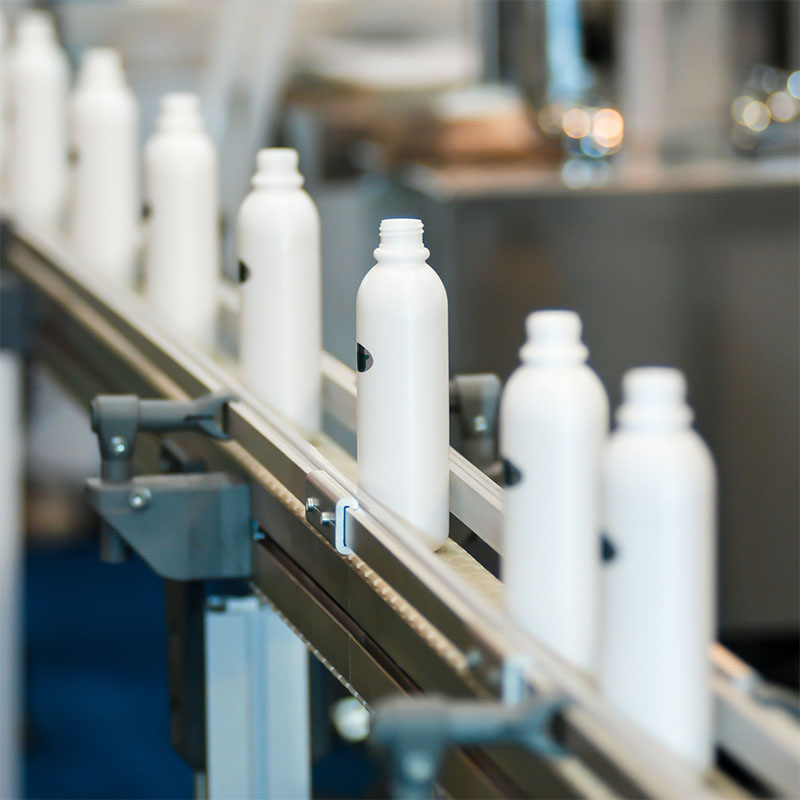

_0002_7810-plastic-bottles-conveyor

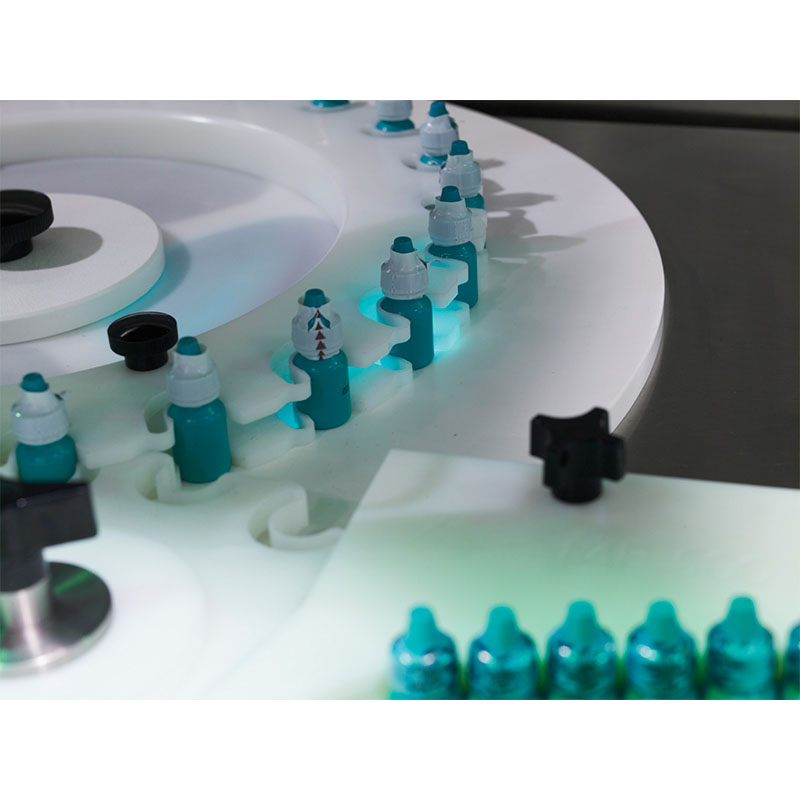

_0001_7810-plastic-bottles-rotational-device

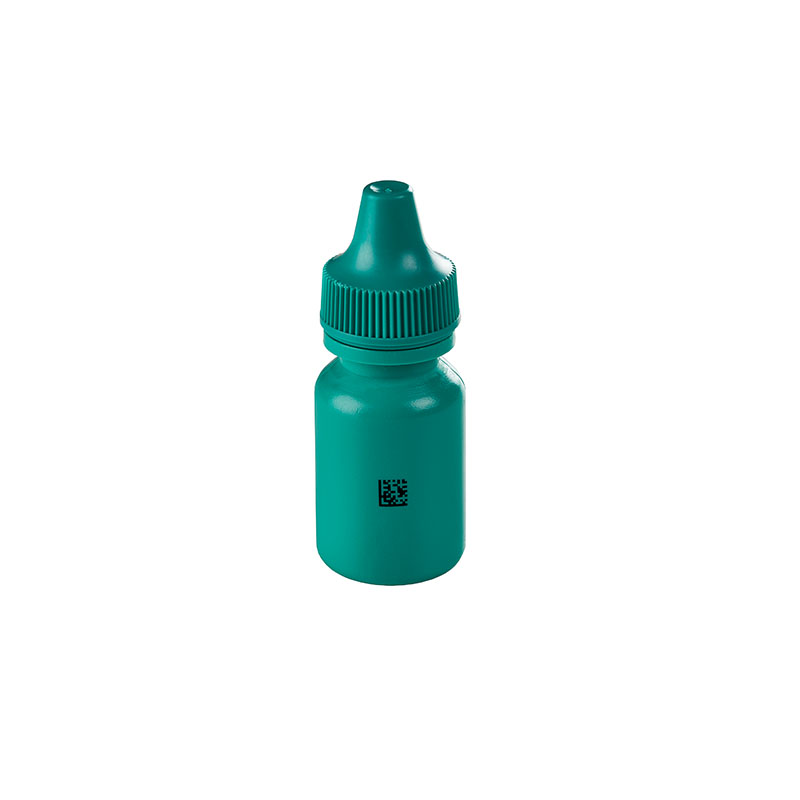

_0000_VJ7810_little-green-HDPE_4_3

Videojet 7810 Industrial UV Laser Marking Machine

UV Laser Marking System
The 7810 UV laser marking system delivers high-contrast, permanent codes enabling product lifetime track and trace for pharmaceutical, medical device and cosmetic manufacturers. Videojet 7810 UV Laser Printer prevents the risk of counterfeiting and meet industry regulations with crisp, vision readable 2D codes on white HDPE and LDPE plastic, and other synthetic fiber materials such as DuPontTM Tyvek®.

Category:

Description

Specification
Value
Laser Tube Pulsed Nd: YVO4 laser (Vanadat), diode-pumped
Maximum Power 2-Watt
Laser Cooling Air cooled
Maximum Print Speed 500 characters/sec
Maximum Line Speed 984 ft/min (300 m/min)
Environmental Protection Marking unit IP20 /Supply unit IP21
Beam Output Steered beam
Laser Source Expected Life 15,000-25,000 hours
Laser Wavelength Options 355 nm
Focal Distance Options SS10 and SS7 with four focusing optics
(f =103 mm/160 mm/214 mm/511 mm)
Maximum Mark Window From 64 x 76 mm2 (SS10, f = 103 mm) to 375 x 375 mm2 (SS10/SS7, f = 511 mm)
Standard I/O Connectivity Ethernet
Standard User Interface Smart Graph (on optional external Windows 7 PC)
Optional User Inteface
Plant Air Used no
Certifications/Approvals CE, CB, TÜV/NRTL

Brand

Video Jet
