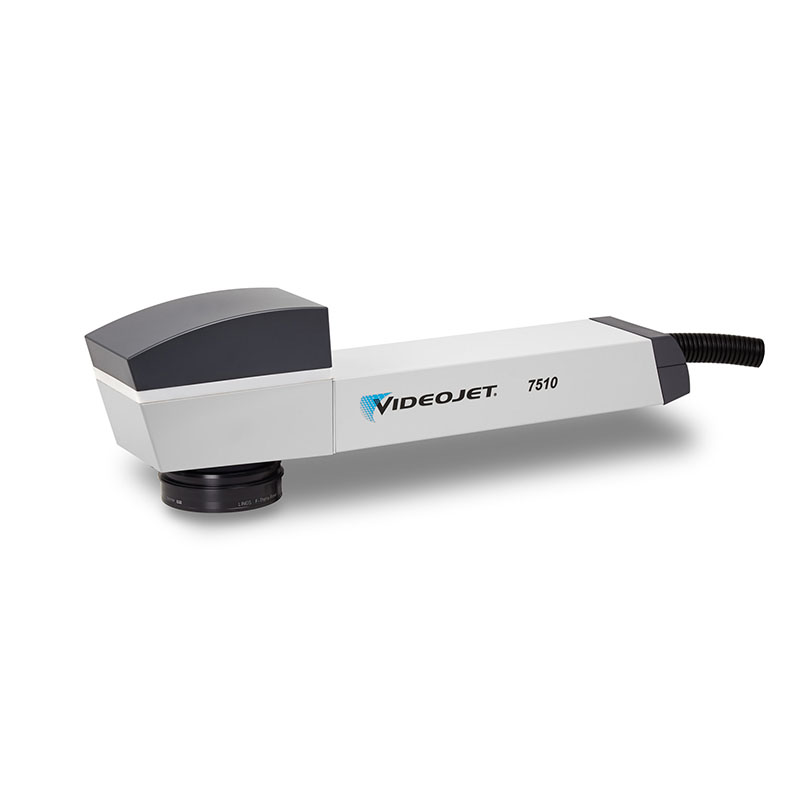

Videojet 7510 Fiber Laser Marking Systems

50 Watt Fiber Laser Marker for Ultra High Line Speed Applications
The 7510 50-Watt fiber laser printer delivers advantaged performance for high contrast marking on robust plastic packaging, metal containers and other industrial products even at ultra-fast line speeds up to 440m/min. Specifically engineered for high speed beverage, pharmaceutical and extrusion manufacturers, the 7510 delivers better mark quality, higher efficiency and a dramatically smaller marking unit than traditional solid state laser systems.

Category:

Description

Specification
Value
Laser Tube Ytterbium (Yb) pulsed fiber laser
Maximum Power 50-Watt
Laser Cooling Air Cooled
Maximum Line Speed 440m/min (1440ft/min)
Environmental Protection Marking Unit: IP54
Supply Unit: IP21
Beam Output Steered Beam
Laser Source Expected Life (MTBF) Up to 100,000 hours (MTBF)
Laser Wavelength Options 1.06µm – 1.07µm
Focal Distance Options 100/163/254/420mm (3.93/6.41/10/16.53in)
Maximum Mark Window 498.5 x 366.5 mm (19.62 x 14.43 in)
Standard I/O Connectivity Internal Terminal Connections
Standard User Interface Smartgraph PC software
Optional User Inteface CLARiTY Laser Controller
Certifications/Approvals CE TUV

Brand

Video Jet
