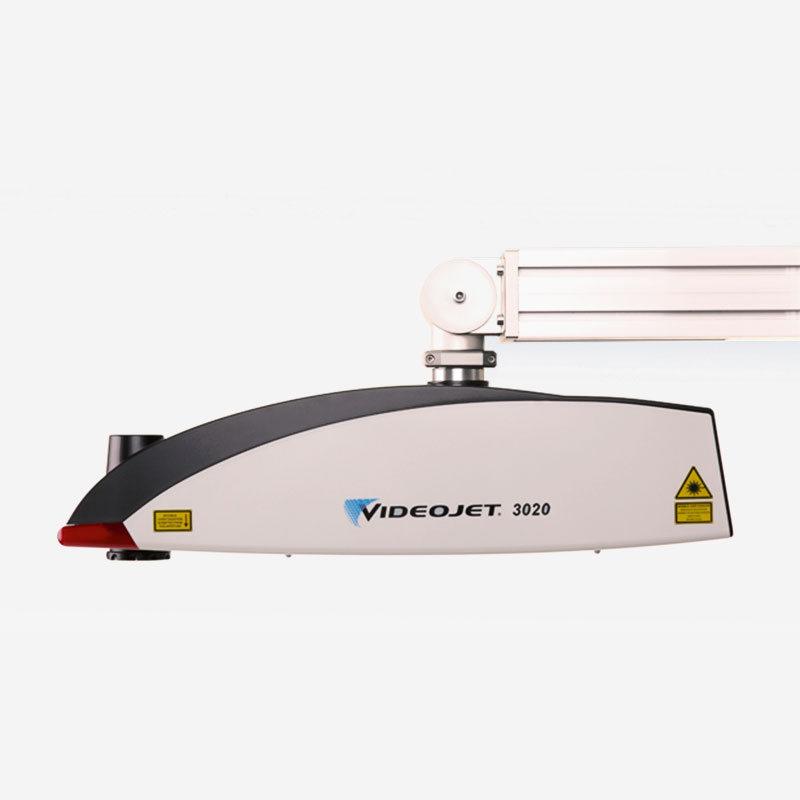

Videojet 3020 Laser Marking Systems

10 Watt Industrial Laser Marking Machine for Simple Coding Applications

The Videojet 3020 10 watt Laser Marking System is specifically designed to meet simple coding applications across a wide range of substrates. It’s simple to set-up and operate, and flexible enough to accommodate changing production demands.

Category:

Description

Specification Value
Laser Tube CO2
Maximum Power 10W
Laser Cooling Fan
Maximum Print Speed 500 characters/sec
Maximum Line Speed 60 m/min (197 ft/min)
Environmental Protection IP20
Beam Output Steered Beam
Laser Source Expected Life 30,000 hours
Laser Wavelength Options 10.6 μm
Focal Distance Options 100 mm (3.93 in) – 200 mm (7.87 in)
Maximum Mark Window 125.6 x 87.1 mm (4.94 x 3.43 in)
Standard I/O Connectivity Plug In Connection
User Interface Touch Panel
Plant Air Used No

Brand

Video Jet
